5KW Off-grid/On-grid Inverter

1 he output is a pure sine wave with stable frequency and voltage and low distortion

2 It has the function of step-up and step-down double-pressure conversion and remote software upgrade management.

3 Millisecond level response, can quickly undertake sudden load and equipment start-up impact

0755-82993060

立即咨询

产品详情

Product parameter

Customized Service Provided

Specification Model	5KW Photovoltaic series
Battery type	LiFePo4
Rated power	5KW
Peak power	6KW
Rating input voltage	230V AC
Battery input voltage	40-62V DC
Photovoltaic input	MPPT voltage	120-500V DC
	Max solar open circuit voltage	500V DC
	Max solar charging current	100A
	Max AC charging current	100A
Output characteristic	Output frequency	50Hz/60Hz±5Hz(self-adaption）
	Output waveform	Sine wave
	THDI	≤3%THD linear load ≤8%THD non-linear load
	Voltage accuracy	±5%
Communicaiton interface	RS232、RS485、dry contact、CAN	CAN default baud rate：250kbps RS232、RS485 default baud rate：9600bps
Protection funciton	Overload, overtemperature protection, overvoltage protection, low-voltage protection and short circuit protection
Operational environment	Working temperature	-20-60℃
	Storage humidity	≤95%RH
	Altitude	≤3000m
	Atmospheric pressure	76-106Kpa

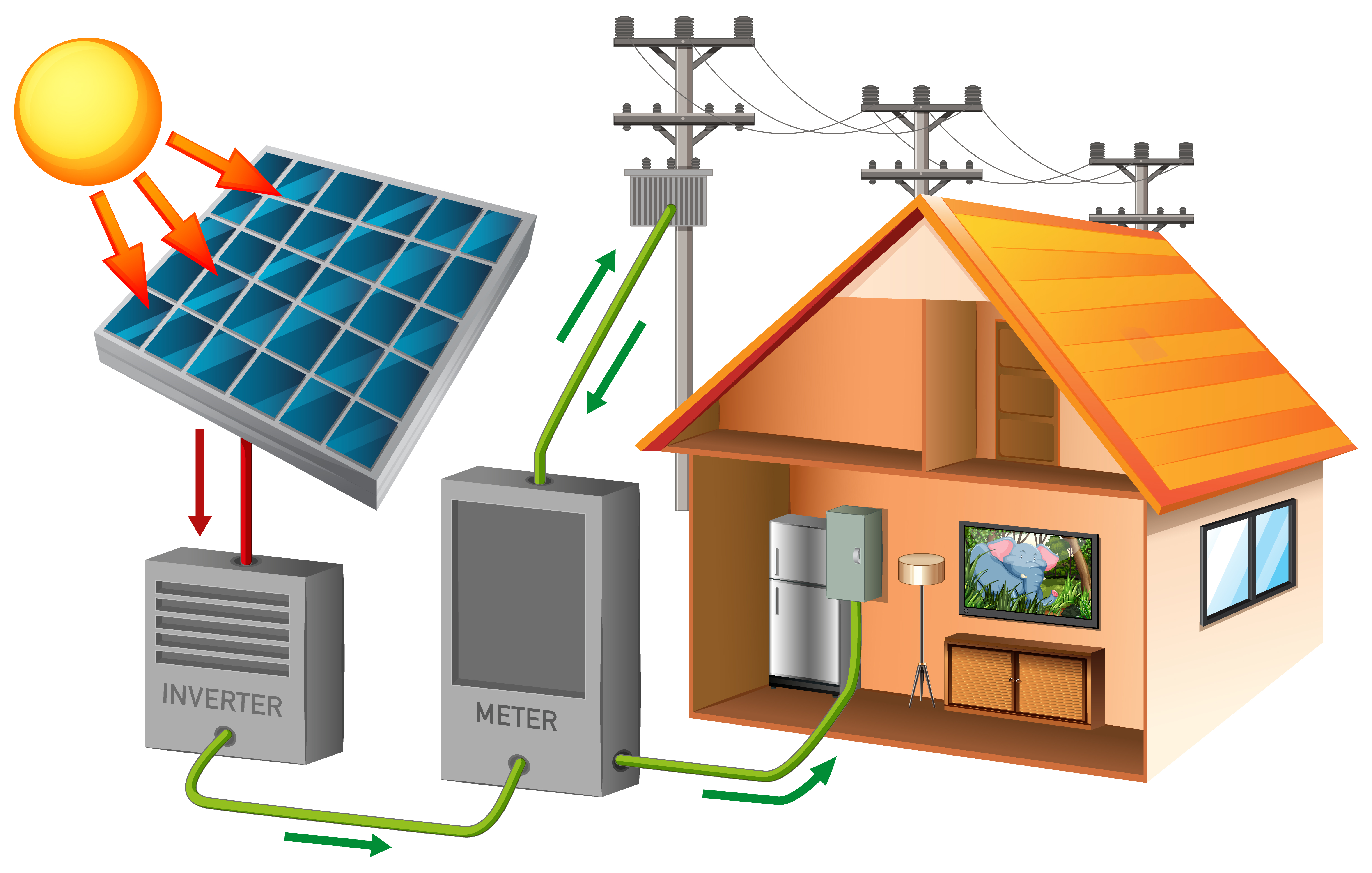

Application field
